CNC Horizontal Boring Mill - Table Type and Floor Type CNC Boring Machine - Bangalore

Tuesday, 21 May, 2013

Item details

City: Bangalore, Karnataka
Offer type: Offer

Contacts

Contact name Sujith Kumar
Phone 9740038400

Item description

FERMAT Group is a extremely skilled Horizontal Boring Mill Manufacturer with the tradition of manufacturing metal operating and process instrumentation within the European nations. Fermat has been into the look, manufacture, supply, and installation of Horizontal Boring Mills in various Engineering and exactitude part producing Industries everywhere the globe. the corporate remains growing and increasing into new markets through a vigorous participation at famous International Trade Fairs everywhere the globe.

Table Type Horizontal boring machine
WFT 13 (R) CNC
WRFT 130 CNC
WFC 13 CNC
WFC 10 CNC

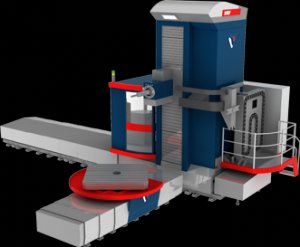

Floor Type Horizontal boring machine

WRF 130/150/160 CNC
WF 13 (R) CNC

Milling machines

WRF Mill
FGU (RT) CNC


Table Type Horizontal boring machine specification :

Diameter of Spindle 130mm

Taper of Spindle ISO-50/BT-50/CAT-50

Range of Spindle speed10-3100rpm

Rated Power of Main Engine S1/S637/56|50/75 KW

Travel Table X1500-5000mm

Headstock Vertical Travel Y2000-3500mm

Longitudinal Travel Z 1500-2000mm

Extension Spindle Travel W730mm

Longitudinal Headstock Travel V (WFT 13R)600mm

Operating Feed X, Y, Z, V1-8000mm/min

W1-6000mm/min

B1-1.7rpm

Max. Table Load 20000kg

Table Dimension 1200x1400-1800x2200mm



Floor Type Horizontal boring machine specification :

Diameter of Spindle 130-160mm

Taper of SpindleISO-50/BT-50/CAT-50

Range of Spindle speed10-3000rpm

Rated Power of Main Engine S1/S637/56|40/60 KW

Travel Table X2400-28100 mm

Headstock Vertical Travel Y2000-6000 mm

Longitudinal Travel Z 1000-1500 mm

Extension Spindle Travel W730-1000 mm

Longitudinal Headstock Travel V1200-3600 mm

Operating Feed X, Y, Z, V1-10000 mm/min

W1-12000 mm/min

B2 rpm

Max. Table Load25000-50000 kg

Table Dimension 2000*2000-3500*3500 mm


Contact at FERMAT

FERMAT Machinery Pvt. Ltd.
Phone: +08041668329
Mobile: +91 9740038400
E-mail: fermat.india@fermatmachinery.com

For more info Visit : httpswww.fermatmachinery.com
